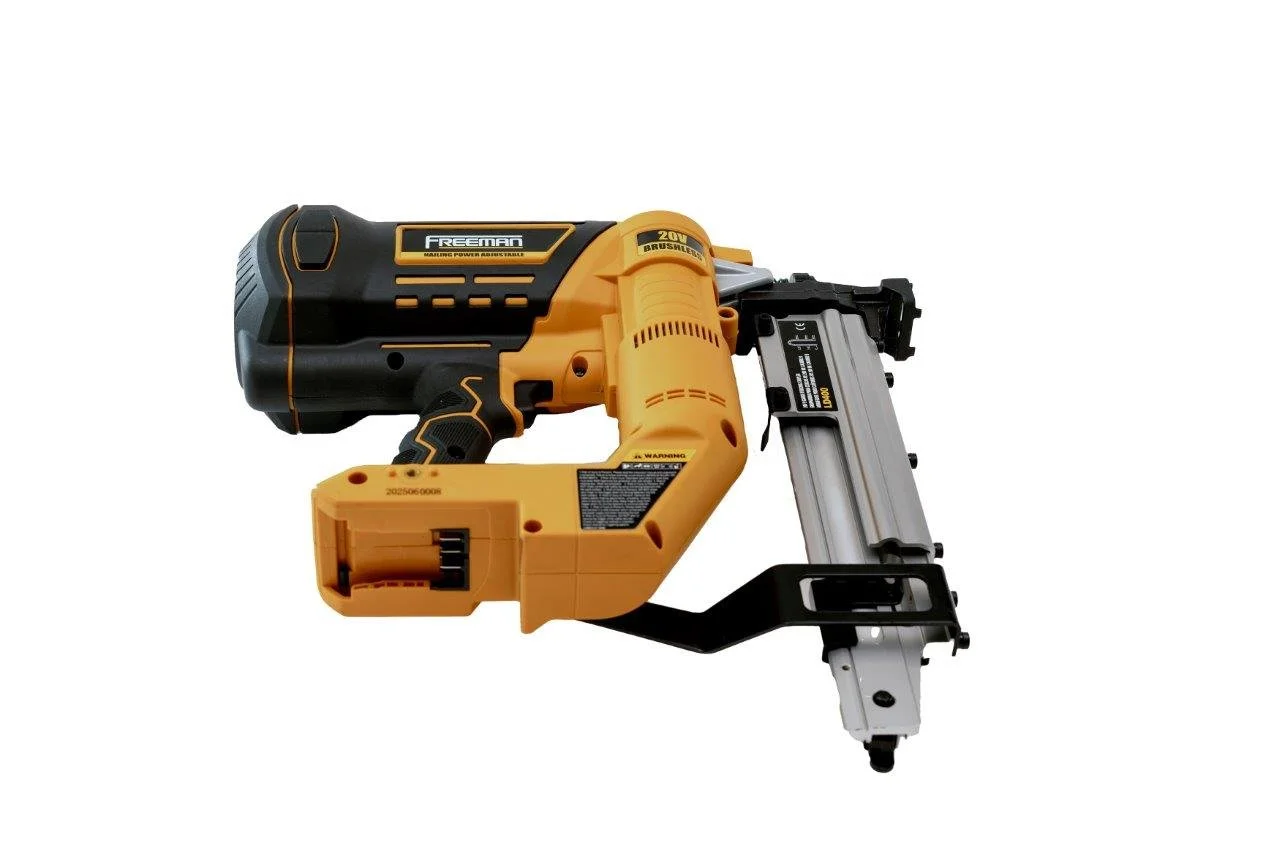

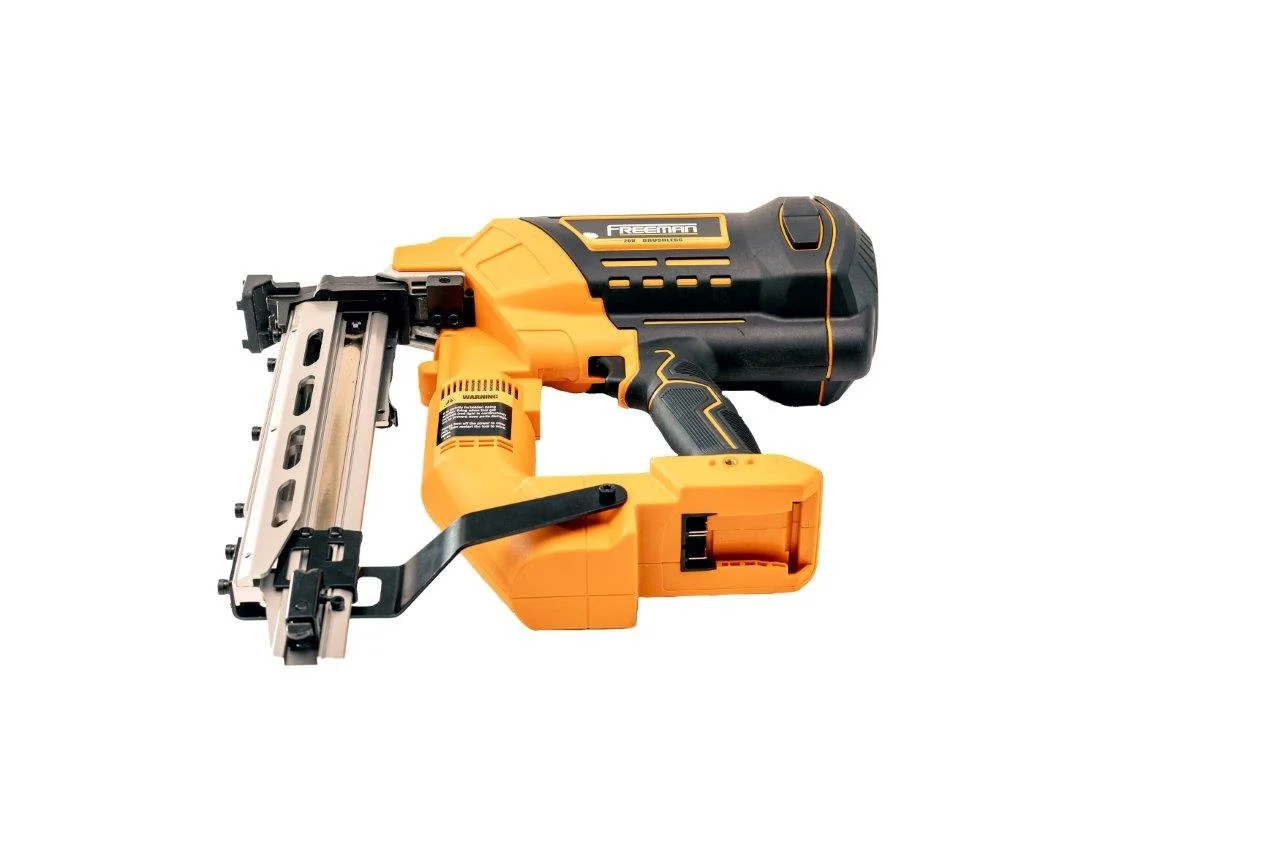

Battery Batten Staple Gun 3.15mm

$0.00

This is your go-to solution for high-output stapling with maximum mobility. Designed for 3.15 mm staples, it delivers serious impact power and control for rural fencing tasks where accuracy and stamina are key. Brushless motor efficiency meets cordless convenience - backed by Freeman's rugged build quality.

Features

  • Drives up to 750 staples per charge at up to 60 staples/min

  • 20V 4.0 Ah battery with LED charge indicator

  • Depth adjustment dial and wire alignment notch for consistent placement

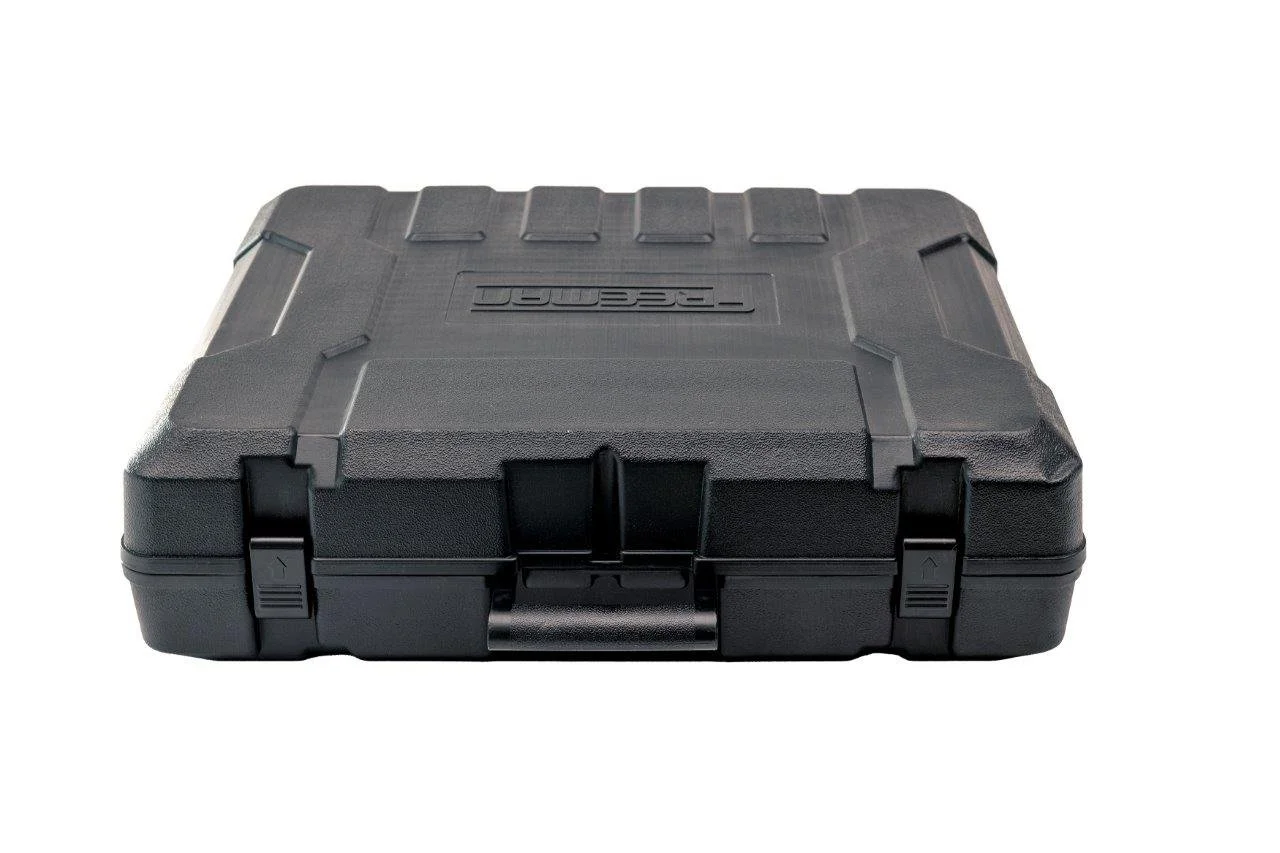

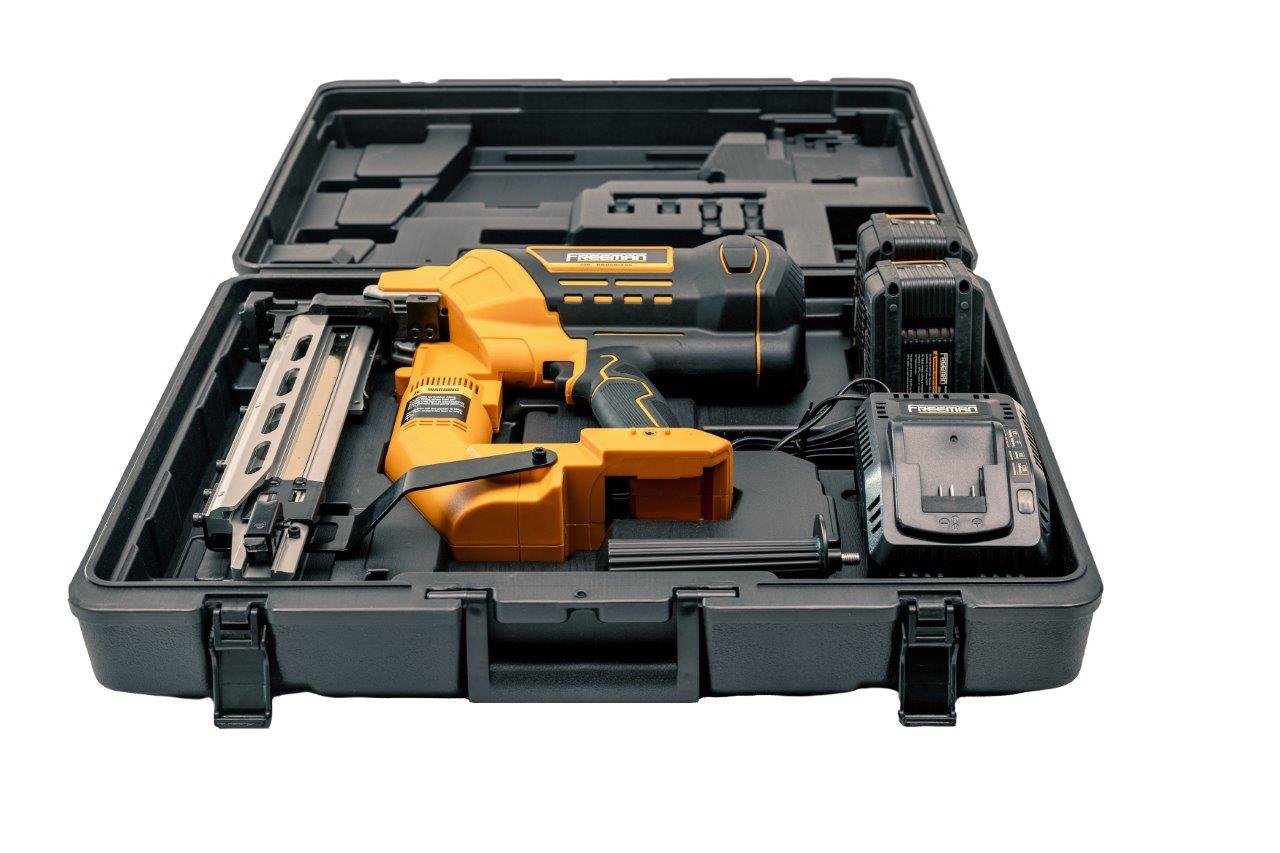

  • Supplied with battery, charger, belt hook and case

  • Freeman’s 1 Year Professional Tool Warranty

This is your go-to solution for high-output stapling with maximum mobility. Designed for 3.15 mm staples, it delivers serious impact power and control for rural fencing tasks where accuracy and stamina are key. Brushless motor efficiency meets cordless convenience - backed by Freeman's rugged build quality.

Features

  • Drives up to 750 staples per charge at up to 60 staples/min

  • 20V 4.0 Ah battery with LED charge indicator

  • Depth adjustment dial and wire alignment notch for consistent placement

  • Supplied with battery, charger, belt hook and case

  • Freeman’s 1 Year Professional Tool Warranty

Applications

  • Fencing – timber fence battens

Specifications

  • Stock Code: BSG315BAT

  • Weight: 4.13kg (Without Battery)

  • Dimensions (without battery): (L × H × W): 367 × 117 × 395 mm

  • Load Capacity: 50 staples

  • Firing Speed: 60 staples per minute

  • Staples per charge: up to 750 staples

  • Maximum allowable pressure: Max 7.5 bar (adjustable through air valve)

  • Actuation Mode: Contact with sequential trigger actuation

  • Battery: 20V 4.0Ah battery

  • Charge Output: 21V 2.3A (90 min charge for 4Ah battery)

  • Impact power: 120J

  • Staple Diameter: 3.15 mm

  • Staple Lengths: 22 mm to 40 mm

  • Staple Type: Plain, barbed, ribbed or knurled staple collated with paper or glue

Downloads

User manual

Warranty

Products
Collated Plain Staples
Collated Plain Staples
$0.00

Reliable performance for everyday fencing. Bayonet Collated Plain Staples are the trusted choice for general purpose rural fencing. NZ-made and BayoZal coated for long-lasting corrosion resistance, they deliver clean, consistent drive-in performance across wire and mesh applications. Collated with adhesive tape for added strip integrity and supplied in robust plastic buckets, they’re built to perform in real field conditions.

Features

  • Straight shaft for smooth drive-in

  • BayoZal coating (95% zinc / 5% aluminium) for enhanced durability

  • Adhesive-taped collation resists breakage in the field

  • Supplied in sturdy plastic buckets for all-weather use

  • Compatible with Bayonet 3.15 mm and 4.00 mm staplers

Read more →
Collated Ribbed Staples
Collated Ribbed Staples
$0.00

Maximum retention for high-stress installs. Bayonet Collated Ribbed Staples deliver the highest holding power in the range. The ribbed shank locks firmly into timber, making them ideal for commercial fencing, high-tension wire setups, and long-term rural installations. NZ-made and BayoZal coated for extended durability, they’re collated with adhesive tape for robust handling and supplied in weather resistant plastic buckets.

Features

  • Ribbed shank for maximum retention in timber

  • BayoZal coating (95% zinc / 5% aluminium) for superior corrosion protection

  • Adhesive-taped collation ensures strip integrity in tough conditions

  • Added inner glue strip to increase holding power without decreasing tool performance

  • Supplied in durable plastic buckets for reliable field use

  • Compatible with Bayonet 3.15 mm and 4.00 mm staplers

Read more →
Collated Barbed Knurled Staples
Collated Barbed Knurled Staples
$0.00

Bayonet Barbed Knurled Staples are built for serious hold strength. With barbed tips to anchor deep and knurled shanks that resist pull-out under pressure, they're made for fencing projects where timber movement, wire tension, or stock contact push ordinary staples to their limit. The BayoZal hot-dip coating adds long-lasting protection, making these staples ideal for tough rural or commercial conditions.

Features

  • Barbed tips and knurled finish for extra grip under tension

  • BayoZal coating (95% zinc / 5% aluminium) for corrosion resistance

  • Supplied collated on paper tape in 50-staple magazine strips

  • Compatible with Bayonet 3.15 mm and 4.00 mm staplers

Read more →
