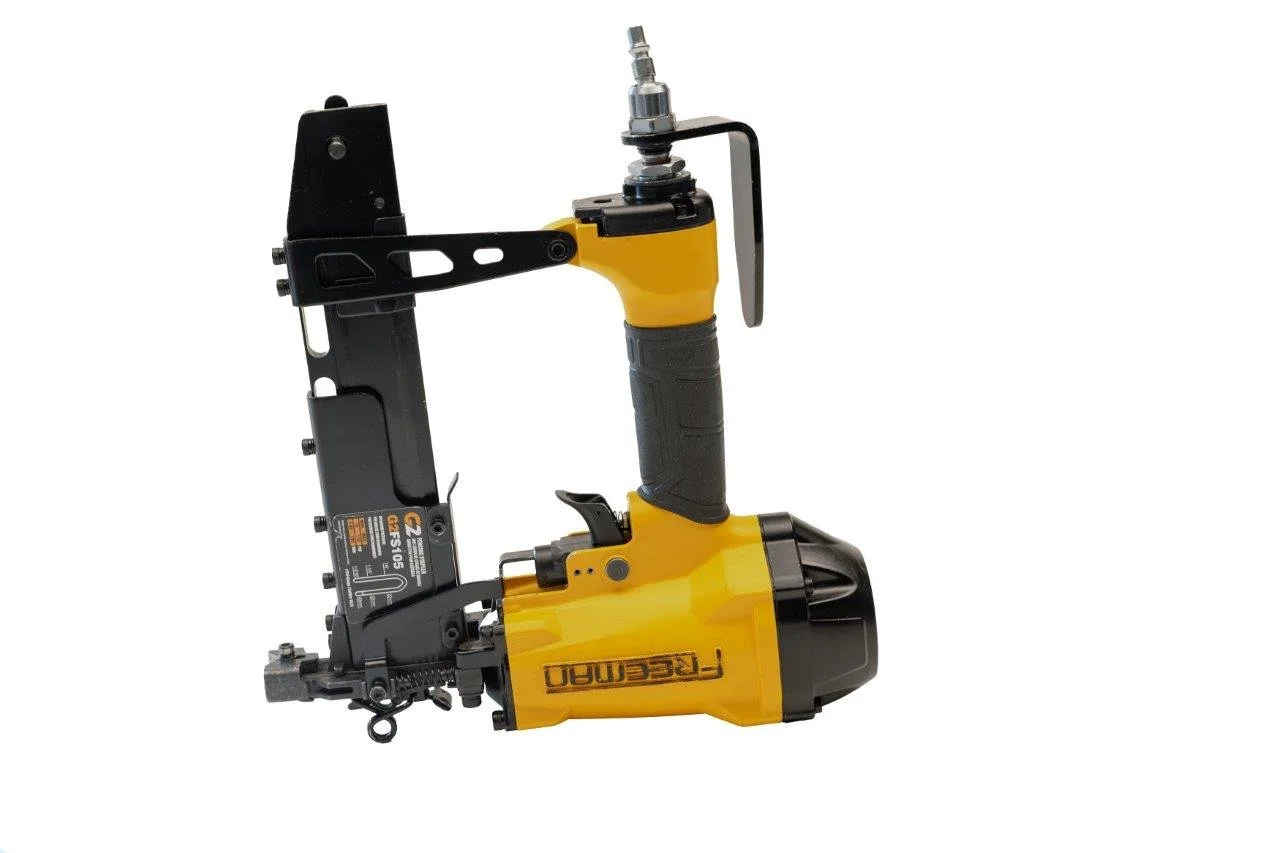

Pneumatic Batten Staple Gun 3.15mm

$0.00

The BSG315AIR is a lightweight, centre-balanced tool built for high-volume stapling in fencing and agricultural applications. With consistent drive depth and minimal recoil, it delivers smooth performance shift after shift — making it a dependable addition to any line crew.

Features

  • Lightweight alloy body with comfortable centre of gravity

  • Adjustable depth of drive for flush finishes

  • Rear exhaust port and quick-clear jam release

  • Modified head for easy placement over wire.

  • Accepts 50-collated staples in the magazine

  • Freeman's 1 Year Professional Tool Warranty

The BSG315AIR is a lightweight, centre-balanced tool built for high-volume stapling in fencing and agricultural applications. With consistent drive depth and minimal recoil, it delivers smooth performance shift after shift — making it a dependable addition to any line crew.

Features

  • Lightweight alloy body with comfortable centre of gravity

  • Adjustable depth of drive for flush finishes

  • Rear exhaust port and quick-clear jam release

  • Modified head for easy placement over wire.

  • Accepts 50-collated staples in the magazine

  • Freeman's 1 Year Professional Tool Warranty

GET EXPERT ADVICE…

From our Customer Support team - then we’ll connect you with a local distributor.

Enquire Now

Applications

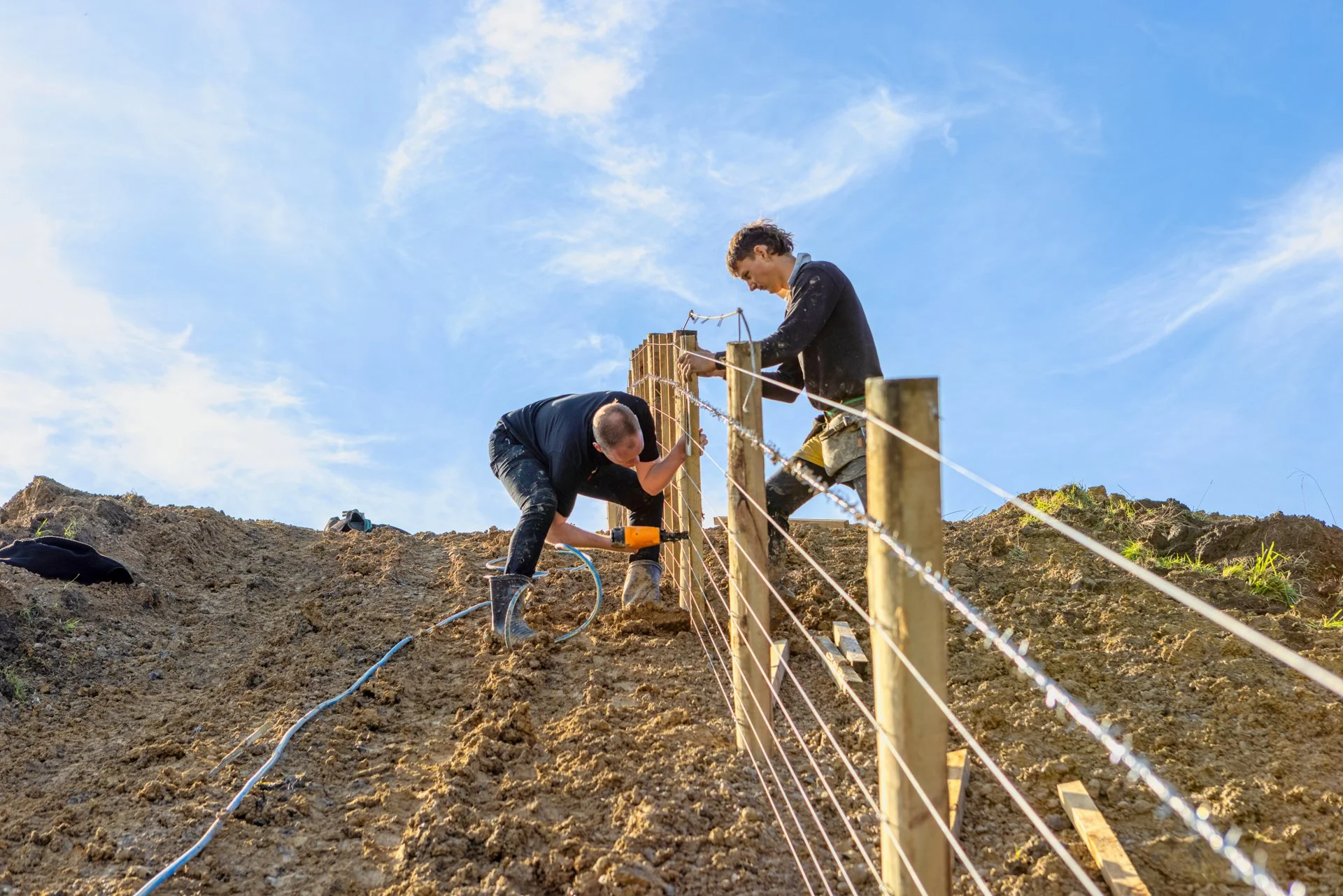

  • Fencing – timber fence battens

Specifications

  • Stock Code: BSG315AIR

  • Weight: 2.3 kg

  • Dimensions: 385 × 85 × 309 mm

  • Load Capacity: 50 staples

  • Actuation Mode: Contact

  • Firing Speed: 60-90 staples per minute

  • Operating Pressure: 70-115PSI / 4.8-7.9bar

  • Minimum recommended SCFM @90PSI: 2.4

  • Fastener Diameter: 3.15mm

  • Fastener Length: 22-33mm

  • Fastener Type: Plain, barbed, ribbed or knurled staple collated with paper or glue

Downloads

User manual

Warranty
